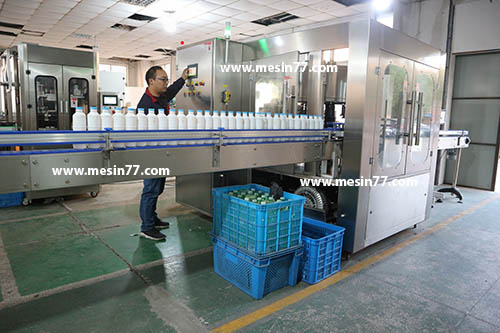

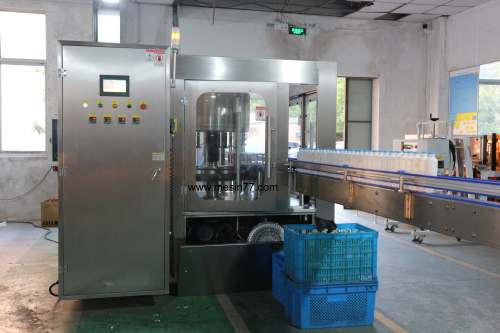

CH-12 Hot Glue / Hot Melt Labelling Machine
Automatic hot melt adhesive labeling machine ,which is widely supplied for different material of container and label. the label cost is comparatively lower, it can meet the requirements of those users who have variety of the containers .It is the most economical models in cost to make mass production. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
2.Apply to range
Hot labeling machine apply to round bottle of food .medicine ,chemical ,and other industry.
3.Feather of equipment.
(1).Delivery labeling is controlled by servo motor.
(2)The labeling is cut accurately.
(3)It is easy to exchange the labeling cutter.
(4)Exchange parts is less and quickly.
(5)Check the labeling quickly and don’t waster the labeling.
(6) 1kg hot melt may use 60000-100000 bottle and reduce the cost.
(7) The label material is OPP, and save cost 1/3.
(8) The machine power is 9 KW. so save electric resource.
4. Working process

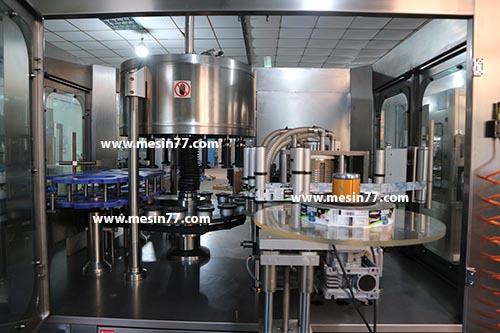

The hot melt adhesive OPP labeling machine is new rotary labeling machine, continuous operation.

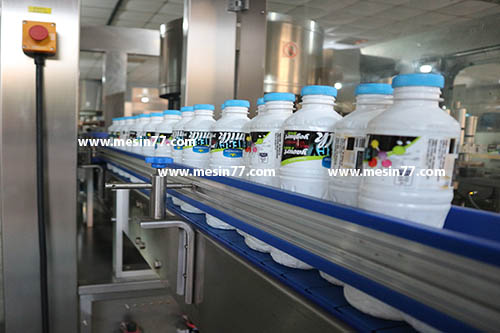

It can automatically adjust the container enter or come out; the bottle transport by the conveyor is divided according to the distance between the star wheel screw separated a certain distance, then import bottle to be sent to the table.
The mold base of bottle are pressed mechanism and fixed the bottle before bottle starts rotation at a certain speed; mechanical pre rotation process and product positioning; positioning label according track of the labeling.
When the bottle arrives at the magic eye detection position, the host computer control system to send mark label, when completed a sending action after a high-speed cutting knife to cut off the label; due to the adoption of SANYO small inertia high speed servo motor, high speed cutting and feeding ensure accuracy and stability of the subject.
The cutting label into the glue system; in this part, two parts edge of the head and tail of the label are coating, which makes the hot melt adhesive consumption is the lowest.
When the label has been transferred to the label position, the label can be adhered to the container accurately and effectively.
Since the container is in a state of rotation during the transfer of the label, the label can be affixed to the container firmly and tightly. The adhesive strip at the end of the glue can form a good label overlapping seal, and a labeling process is completed.
Enter bottle --The pre positioning --- cutting mark ---gluing --- labeling --- hold up the label --- compress tightly ---complete
Bottle type： Glass bottle, plastic bottle
Product speed (b/h)： 12000 ( as per 500ml round bottle )
Label material： OPP/ Pearl film/composite paper
Accuracy error(mm)： ±0.5mm
Label size (mm)： （L）20-300mm （H）10-180mm
Bottle size (mm)： Outer diameterφ40-φ600mm heght30-500mm
Label inner diameter (mm)： Φ150mm
Label outer diameter (mm)： Φ500mm（big)
Air compressed pressure(bar) Min5.0bar Max8.0bar
Air consumption 0.2M³/minute
