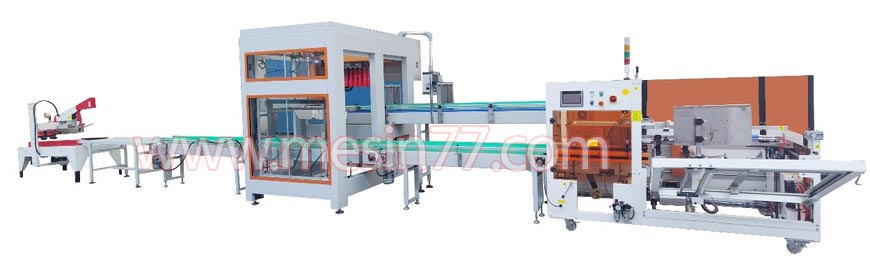

Robot Case Packing Machine is the machine for transfer bottle, can, jars, bricks, etc from line conveyor into carton.

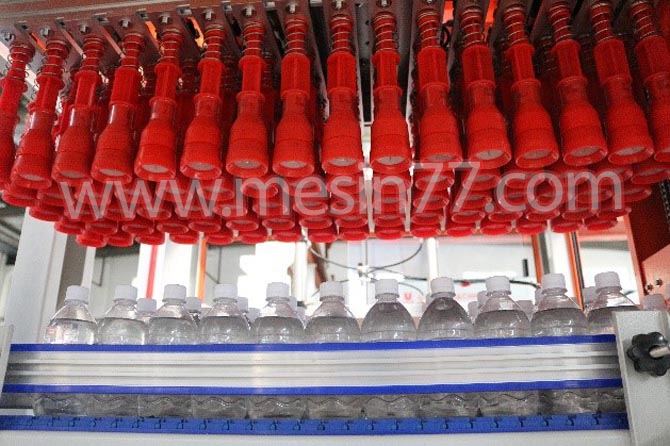

Robot Case Packer will pick and place some bottles.

Case Erector

  • Advanced technology manufacturing, and advanced parts, electrical components and pneumatic components.
  • The machine is with a vertical storage, so that you can add carton at any time, be sure the machine keeps running continuously.
  • It is suitable for one kind carton size at one time, when you need to change a different carton box, it takes about 1-2 minutes to switch.
  • The machines are reasonable design, synchronous absorb forming, folding bottom and bottom sealing.
  • Its body and part performance precisely and durably. Which has operation process with no vibration, operation stability, long life span, high efficiency.
  • Equipped with blade protection device, avoid operation when its accidentally stabbed.
  • It can be used separately, or connect the production line together then work in group.

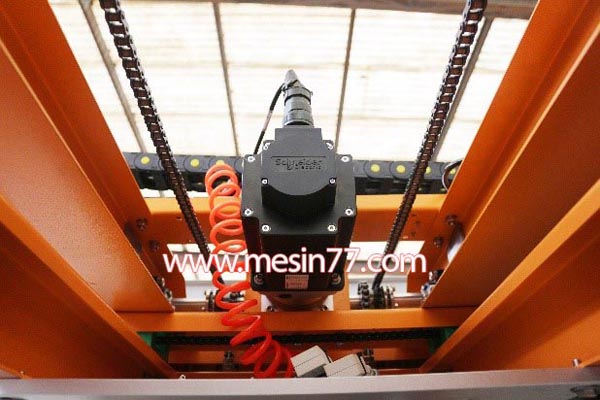

Automatic Grab Type Case Packaging Machine

  • It clamps product into the open carton, when scratching heads up, carton discharge, sent into the sealing machine.
  • PLC and touch screen control.
  • When there is a lack of material, it will alarm, then the machine stops running automatically.
  • It is with convenient operation, simple design, reducing quantity and intensity of labor, is an indispensable equipment for automatic production line.
  • According to the packing requirements, it can automatically finish product arrangement.
  • It is neoteric designed and with a compact structure.
  • It is computer programmed with a simple operation and stable performance.

Automatic Case Sealer

  • Automatic upper flap-folding
  • Easy operation
  • New type of tape head
  • Both side compression rollers for tight sealing
  • Top mast with cushion for smooth sealing
  • Tape overlap length 60±5mm>/li>
  • Two-side belt driven with universal bearing: Precise, Low noise, durable parts and belt
  • Caster with brake
  • Equipped with control valve type, different size carton no manual adjustment, especially suitable for production line.

Power Supply 3PH 220V/380V 50/60Hz
Machine Dimension 1700 x 1950 x 2060 mm
Height of Work Table Feed-in worktable 850mm; out 650mm
Packing Size 500 x 500 x 200 mm
Packing Weight Max.20 Kg
Capacity 4-5 cases/min
Power 5 KW
Air Pressure 6-8kg/cm2
Packing Material Carton
