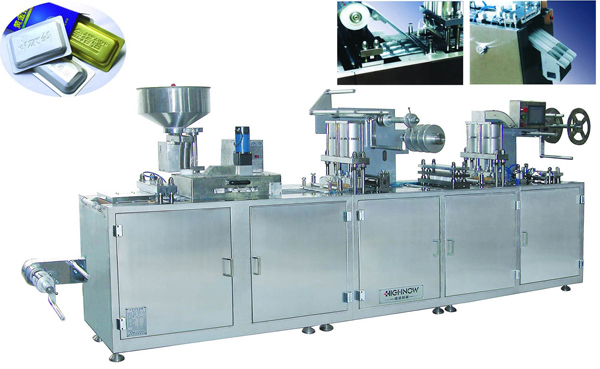

CHM-250L Alu/PVC(Alu/Alu)Blister Packing Machine

This machine is our new model made according to GMP standardof medical vocation.It combines advantages of several main modelsof current machines,and we have made further innovation on it.It adopts actuating motor,featured with convenient travel adjust-ment,accurate plates register,accurate mould location and easy mould changing.

Selain untuk produk jamu dan farmasi, mesin ini juga umum digunakan untuk produk supplier hotel seperti mentega, selai, dll


Punching Frequency 15~25time/min(Frequency control)
Productivity 4~10ten-thous granules/hour
Adjustable scope of travel 30~120mm
Max forming area and depth Alu/PVC245X112X18mm
Alu/Alu245X112X12mm
Power Three phase four wire system 380V 50Hz
Total power 6.0Kw
Packing material Medicinal PVC:0.25(0.15-0.5)mm
Forming aluminum foil:Alu/PVC/Alu 250X0.15(0.10~0.18)mm
PTP Aluminum seal: 250X0.02mm
Air-Compressd 0.4~0.7Mpa
Air Consumption ≥0.38m3/min
Overall Dimensions 3920X830X1900mm
Packaging Dimensions 4360X730X1570mm
weight 2050kg
